Heatmap

Heatmap

To access a heatmap view of your line's OEE and APQ parameters, navigate to the "Heatmap" tab of the machine monitoring module. This will open the heatmap in a new browser tab.

By default, the heatmap displays all machines on your line along with their OEE values - including average, minimum, and maximum metrics. You can toggle between viewing data by machine(asset) or by cell.

Additionally, you can switch the heatmap to display various performance parameters and apply filters by part types or shifts.

You can filter the heatmap by various parameters to view their values during the selected date range:

Available Parameters

  1. OEE
  2. Availability
    • Overall Availability
    • JPH Availability Loss
    • Availability Part Loss
    • Downtime
  3. Performance
    • Total Performance
    • Self-Performance
    • Good Part JPH
    • Total Part JPH
    • Good Parts
    • Total Parts
  4. Quality
    • Overall Quality
    • Bad Part JPH
    • Bad Parts
You can either view the heatmap of all machines or cells of your line. By default, you will be displayed the heatmap of your machines.

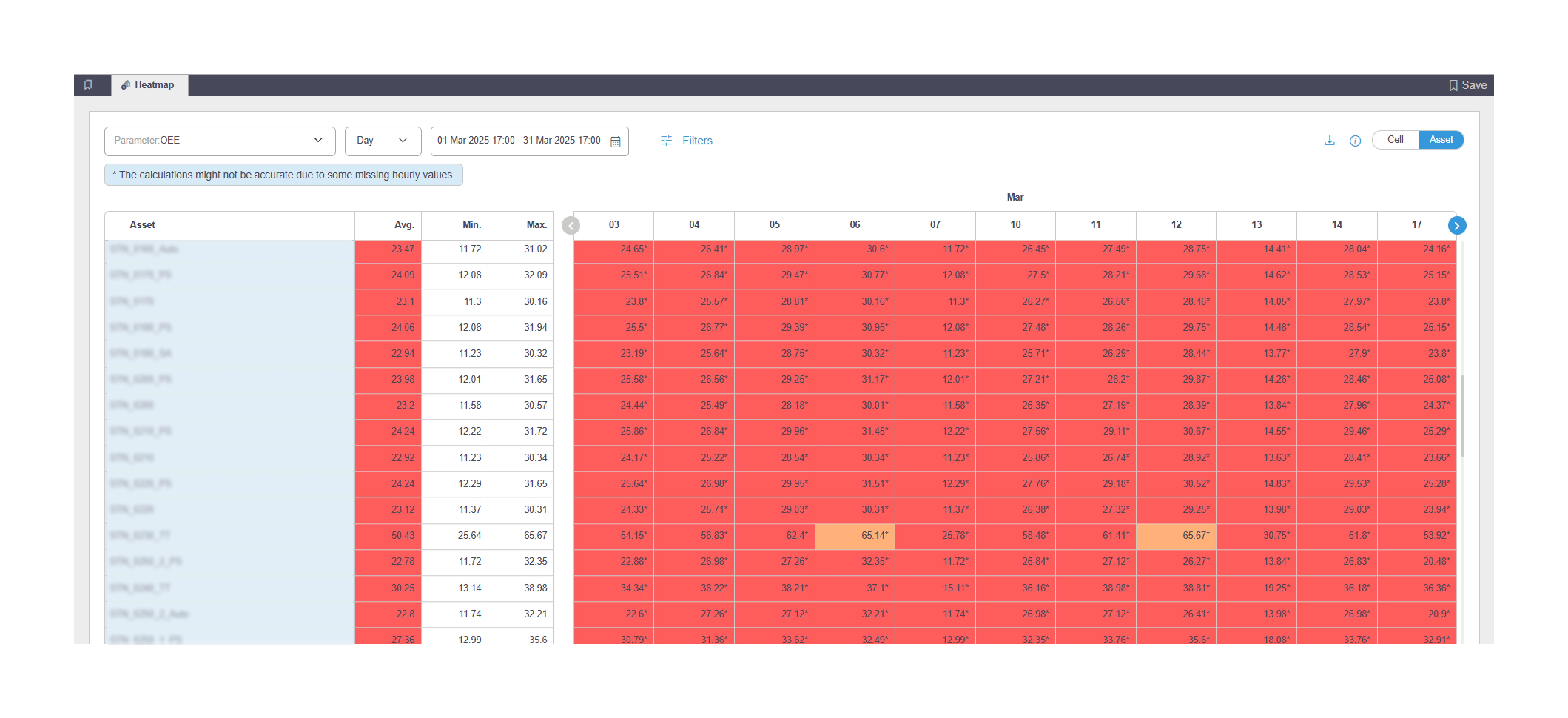

Machine heatmap view

When viewing the machine-level heatmap, you’ll see a list of all machines on your line, each showing:

  • The selected parameter’s values for the specified date range
  • Machine-specific average, minimum, and maximum values for that parameter

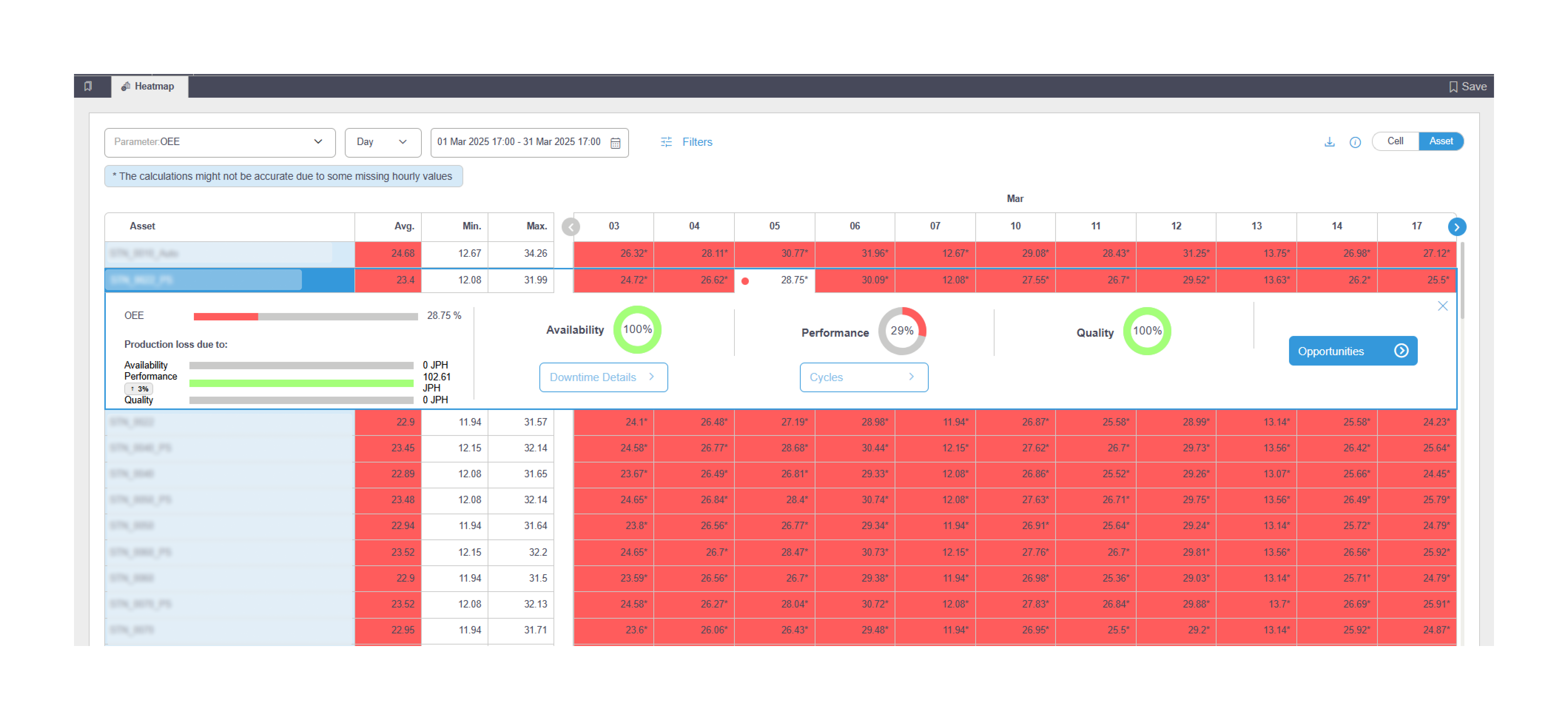

Selecting a machine provides a detailed view of:

  1. Production losses related to availability, performance, and quality
  2. Key metrics: Availability, Performance, and Quality
  3. Additional insights: Downtime details, Cycle details, and Opportunity analysis

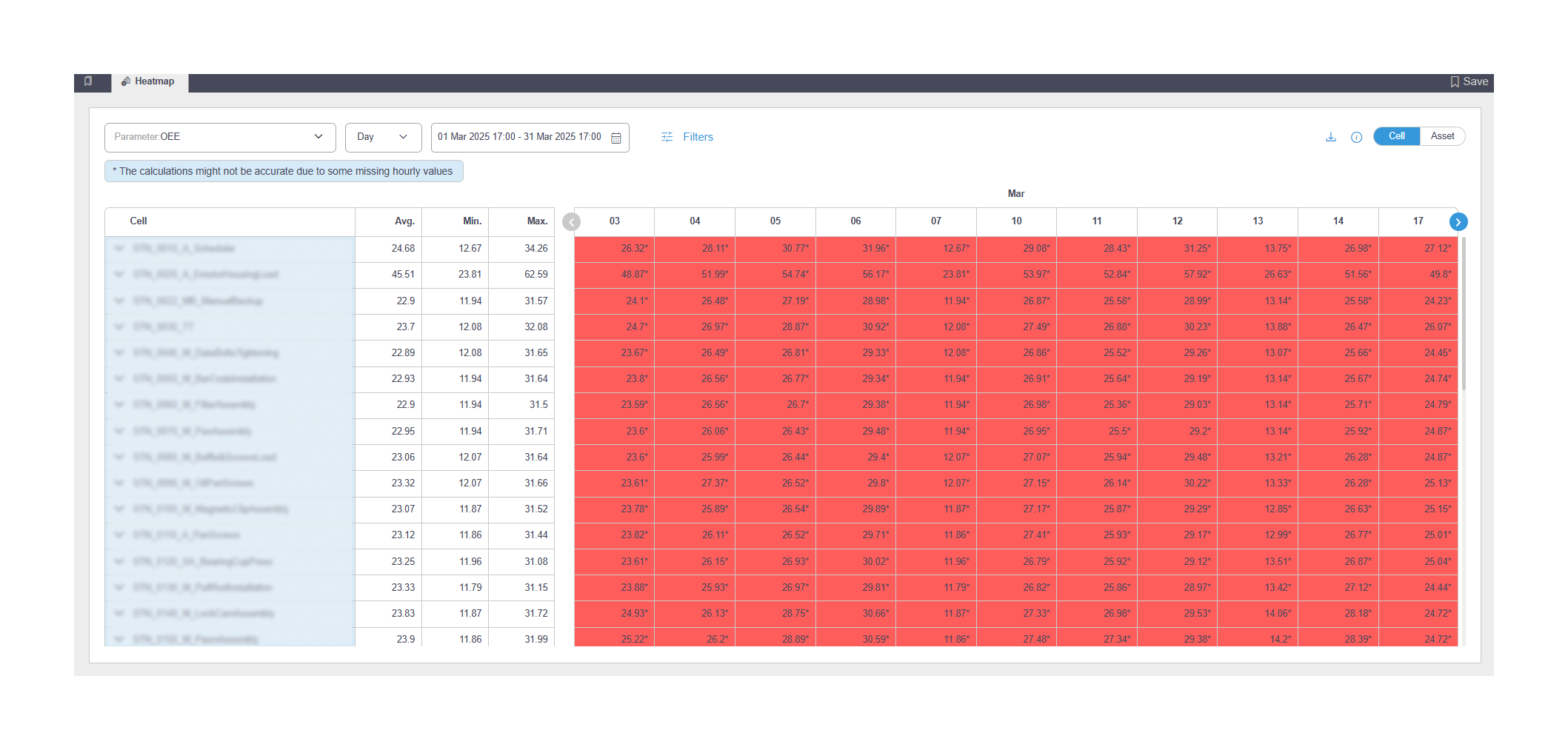

Cell heatmap view

When switching to cell-level heatmap view, you’ll see all cells on your line with:

  • Selected parameter values for the chosen date range
  • Cell-specific average, minimum, and maximum values

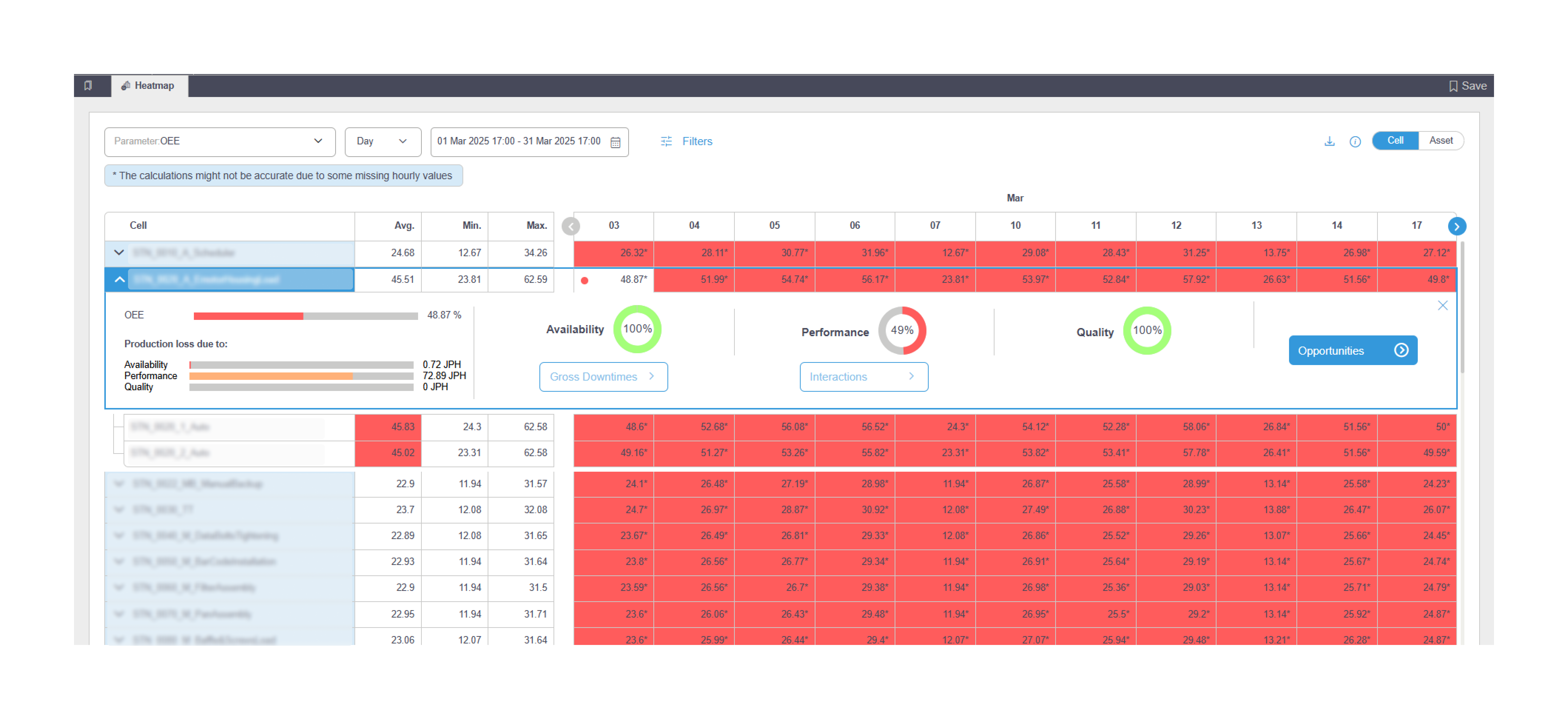

Upon selecting a cell, detailed insights include:

  1. Production losses due to availability, performance, and quality issues
  2. Metrics for Availability, Performance, and Quality
  3. Further analysis: Gross downtimes, Interaction history, and Opportunities
