Template dashboard
Overview
Linecraft AI provides a wide range of pre-set templates that you can leverage to create your own template dashboard to monitor and analyze the following parameters:
- OEE
- JPH
- Good part production
- Overall production
- MTTR
- MTBF
- Downtimes and uptimes
- Bottlenecks
- Bad parts
OEE templates
OEE trend

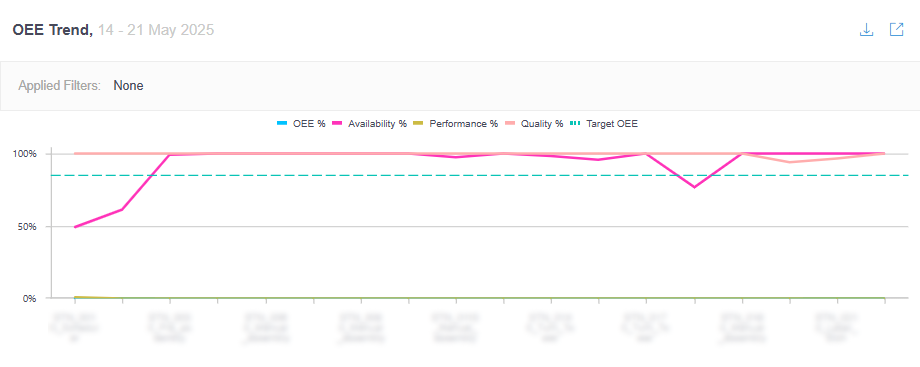

The OEE trend graph highlights the OEE trend over a specified period of time along with the target OEE, in a line-chart view
The OEE trend graph highlights the OEE trend over a specified period of time along with the target OEE, in a line-chart view
JPH trend

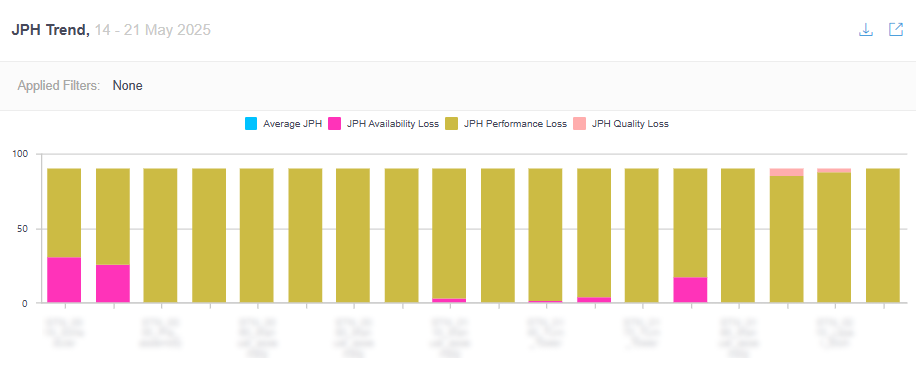

The JPH trend graph highlights the JPH trend over a specified period of time along with:
The JPH trend graph highlights the JPH trend over a specified period of time along with:
- Average JPH
- JPH availability, performance and quality losses
On-shift good part production

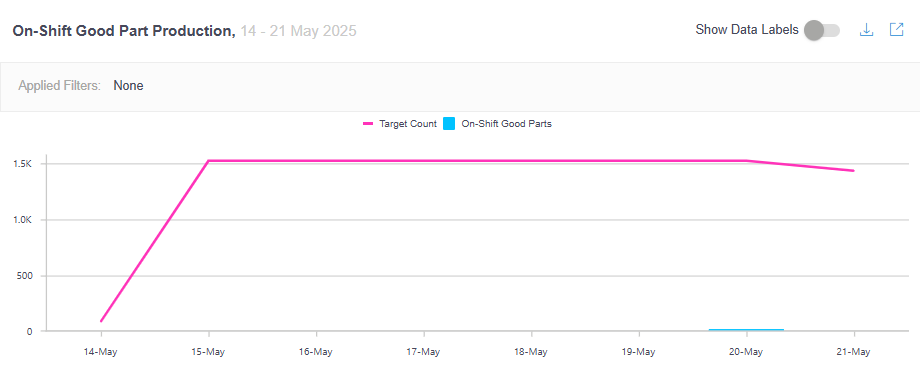

The on-shift good part production graph highlights the number of good parts produced during defined shift timings along with the production target
The on-shift good part production graph highlights the number of good parts produced during defined shift timings along with the production target
Overall production
The Overall production graph highlights the total number of parts (good and bad) produced during the defined shift timings and beyond that as well along with the target production
The Overall production graph highlights the total number of parts (good and bad) produced during the defined shift timings and beyond that as well along with the target production
Downtime vs Uptime (cell and machine)
The downtime vs uptime graphs come in two variants: cell and machine.
The downtime vs uptime graphs come in two variants: cell and machine.

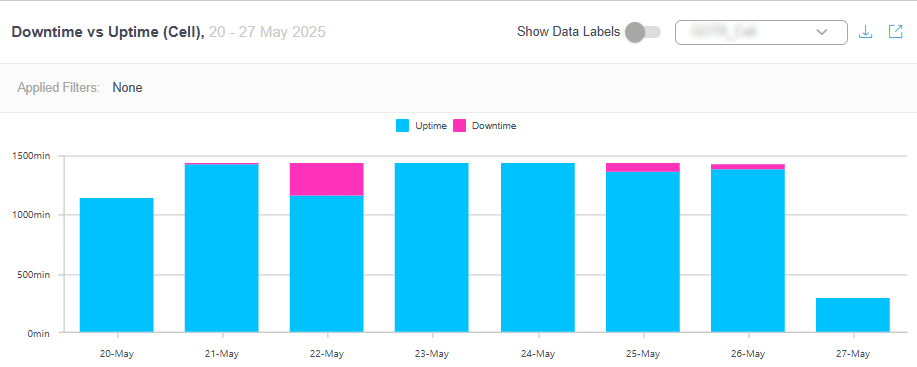

The cell downtime vs uptime graph highlights the duration when cells were down vs when they were up. The machine variant of it displays the same information, but for machines
JPH time series (cell and machine)
The JPH time series graphs come in two variants: cell and machine.
The JPH time series graphs come in two variants: cell and machine.

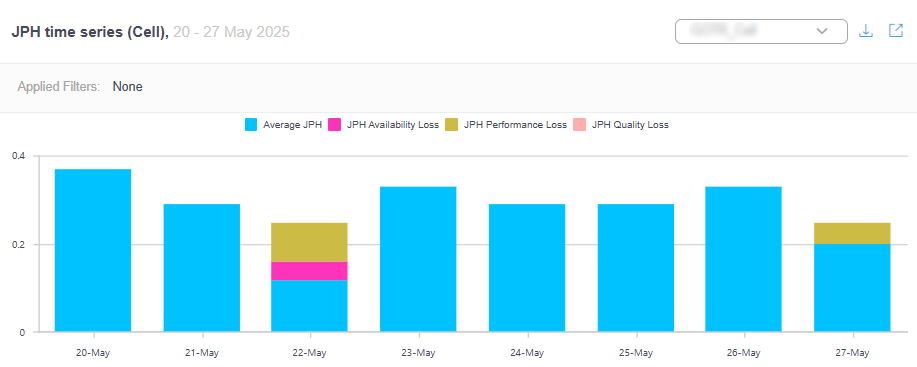

The cell-wise JPH time series graph displays the following data for cells of a line, whereas the machine-wise JPH time series graph displays the same data, but for machines:
- Average JPH
- JPH availability loss
- JPH performance loss
- JPH quality loss
OEE time series (cell and machine)
The OEE time series graphs come in two variants: cell and machine.
The OEE time series graphs come in two variants: cell and machine.

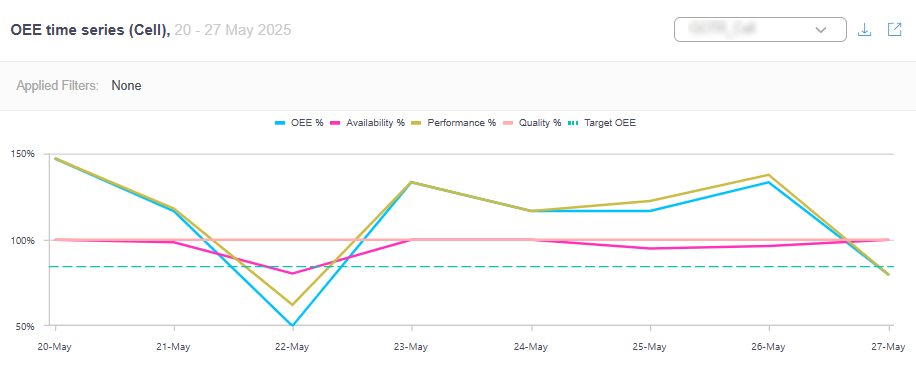

The cell-wise OEE time series graph displays the following data for cells of a line, whereas the machine-wise OEE time series graph displays the same data, but for machines:
- OEE
- Availability
- Performance
- Quality
- Target OEE
MTBF time series

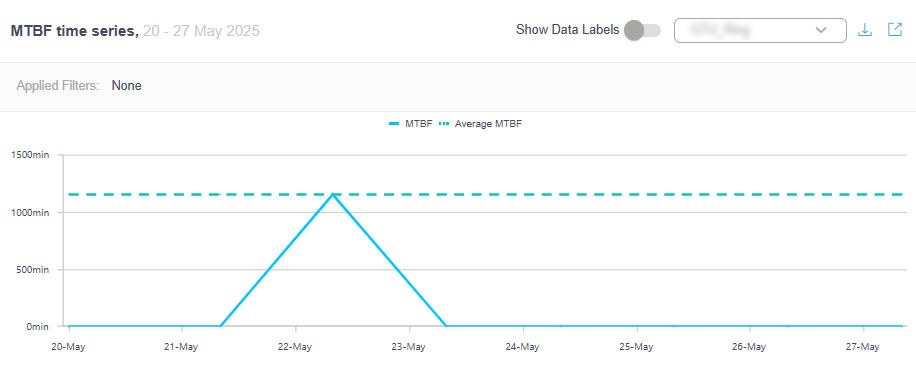

The MTBF time series represents the mean time taken between consecutive failures and the average MTBF, over a period of time
The MTBF time series represents the mean time taken between consecutive failures and the average MTBF, over a period of time
MTTR time series

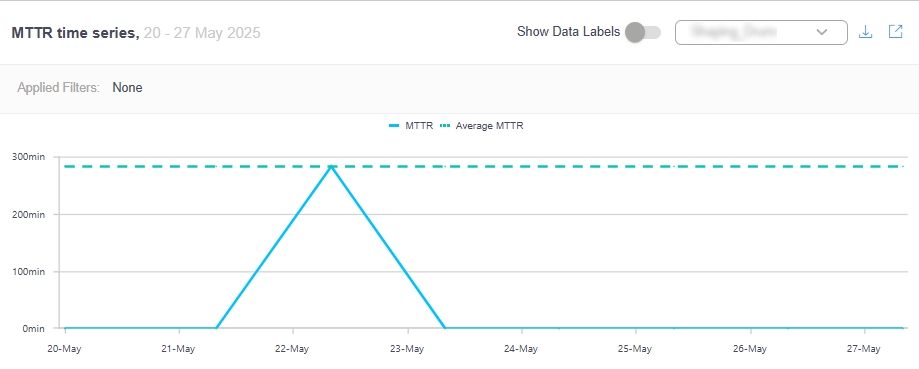

The MTTR time series represents the mean time taken to repair failures and the average MTTR , over a period of time
The MTTR time series represents the mean time taken to repair failures and the average MTTR , over a period of time
Bad parts pareto

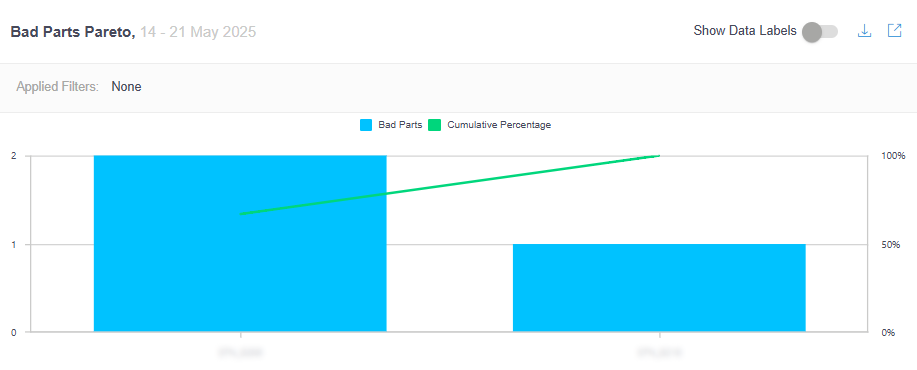

The bad parts pareto represents a pareto chart of bad parts produced by a machine and how much each machine is contributing to the total number of bad parts produced
The bad parts pareto represents a pareto chart of bad parts produced by a machine and how much each machine is contributing to the total number of bad parts produced
Bottleneck impact

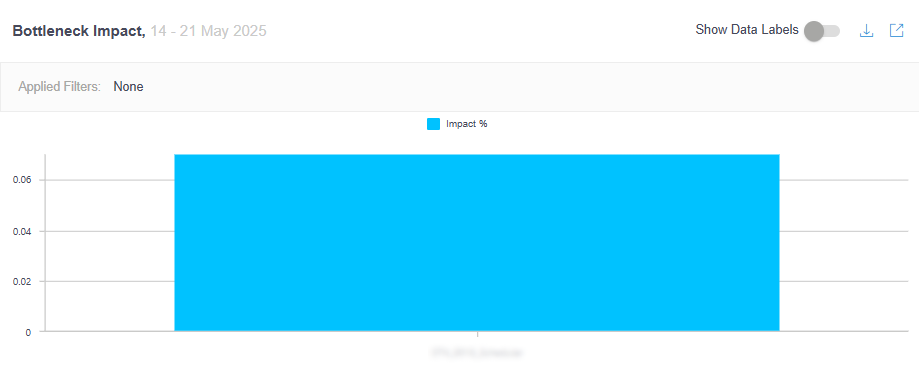

The bottleneck impact represents the impact of bottleneck cells and machines on the entire line as a percentage value
The bottleneck impact represents the impact of bottleneck cells and machines on the entire line as a percentage value
